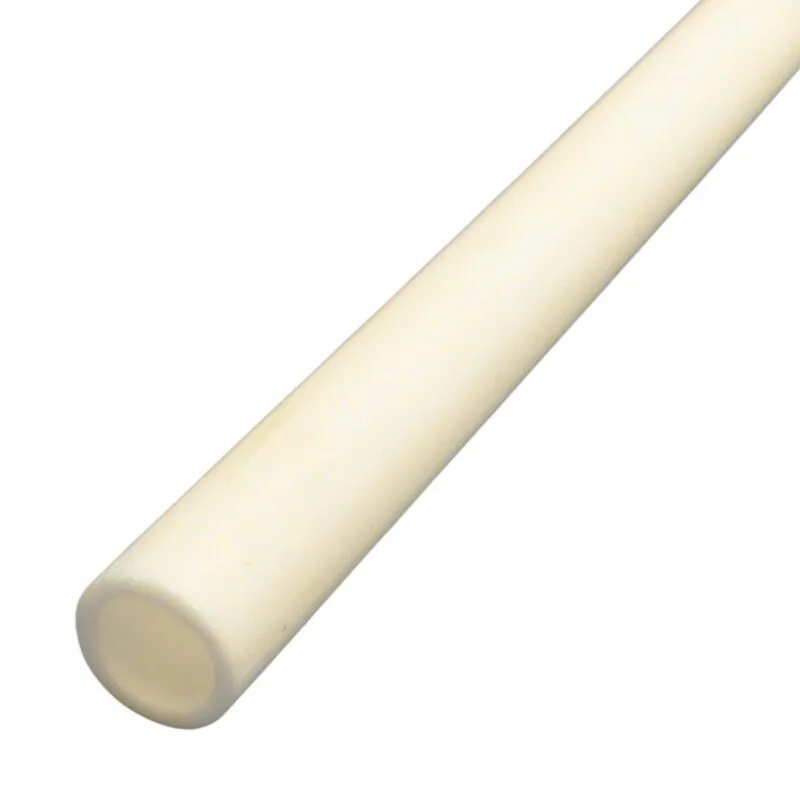

Q: What is a 6mm OD x 4mm ID Recrystalised Alumina Tube with a closed end used for?
A: This recrystalised alumina tube is designed to protect thermocouple sensing junctions in high-temperature environments. The closed-end construction shields the thermocouple from direct contact with process gases, contaminants, and abrasive materials while allowing accurate temperature measurement in furnaces, kilns, and heat treatment equipment.
Q: Why would I choose recrystalised alumina instead of aluminous porcelain?
A: Recrystalised alumina offers higher purity, improved temperature resistance, and greater long-term stability than standard aluminous porcelain. It is often selected for more demanding applications where thermocouples are exposed to extreme temperatures and prolonged operating cycles.
Q: Which thermocouple types can be used with this protection tube?
A: This tube can be used with both base metal thermocouples, such as Type K and Type N, and noble metal thermocouples such as Type R and Type S. Its high-temperature capability makes it suitable for a wide range of industrial and laboratory measurement applications.
Q: What are the benefits of a closed-one-end ceramic tube?
A: A closed-end tube protects the thermocouple measuring junction from oxidation, process contamination, corrosive atmospheres, and mechanical damage. This can improve measurement reliability and help extend the service life of the thermocouple assembly.
Q: Why would I choose a 6mm OD x 4mm ID tube?
A: The 6mm outer diameter provides a compact solution for applications where installation space is limited. The 4mm inner diameter is suitable for many standard thermocouple assemblies while maintaining good mechanical strength and protection for the sensing element.
Q: Is this tube suitable for furnace and kiln applications?
A: Yes. Recrystalised alumina tubes are widely used in furnaces, kilns, laboratory ovens, and heat treatment processes because they provide excellent protection and insulation for thermocouples operating at elevated temperatures.
Q: Can this ceramic tube withstand repeated heating and cooling cycles?
A: Recrystalised alumina offers excellent thermal stability and performs well in demanding thermal environments. While care should always be taken to minimise excessive thermal shock, the material is well suited to applications involving regular temperature cycling.
Q: Which industries commonly use small-diameter recrystalised alumina tubes?
A: These tubes are commonly used in laboratory testing, ceramics manufacturing, research facilities, furnace construction, heat treatment operations, aerospace applications, and industrial process heating where compact thermocouple protection is required.
Q: When should I choose a recrystalised alumina tube instead of a metallic protection tube?
A: Recrystalised alumina is often preferred when temperatures exceed the capabilities of metallic protection tubes or where superior electrical insulation and resistance to high-temperature degradation are required. It is particularly useful for applications involving prolonged exposure to extreme temperatures.
Q: What advantage does the 4mm internal diameter provide?
A: The 4mm internal bore is ideal for compact thermocouple assemblies and installations where space is restricted. It allows effective sensor protection while keeping the overall assembly size small, making it suitable for laboratory and precision industrial applications.
