Special Options:
- Threaded pocket
- Pocket bent to right-angle or other shape
- Machined high tolerance metal enclosure
- Cable spring relief available
- Partial heat transfer paste filling
- Duplex
- Insulated or grounded junction
- IP68 compatible designs
- Material Certificates
| Type Designation: |
CTM
|
| Temperature Range: |
-100 to 230°C
|
| Common Sensor Types: |
K, J, N, T, E
|
| Common Diameters: |
Ø 2.0mm to Ø 12.7mm
|
| Common Insulation: |
PVC, Silicon rubber, PTFE, Glass fibre
|
| Common Stranding: |
7×0.2
|
| Common Sheaths: |
316SS, brass, aluminium
|
| Tail Detail: |
50mm tails, 10mm tinned
|
Delivery time: 1 week, subject to stock availability.
We ship to the following countries:
United Kingdom, Austria, Belgium, Bosnia and Herzegovina, Brazil, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, India, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, United States
Shipping rates:
• £15 for orders from UK Mainland.
• £25 for orders from UK – Highlands & Islands.
• £35 for orders from Belgium, Ireland, Luxembourg and Netherlands.
• £37 for orders from France and Germany.
• £42 for orders from Switzerland.
• £43 for orders from Austria, Denmark, Italy, Portugal and Spain.
• £45 for orders from Czech Republic, Slovakia, Slovenia and Bulgaria.
• £49 for orders from Iceland.
• £51 for orders from Finland, Sweden and Greece.
• £53 for orders from Croatia, Estonia, Hungary, Poland, Latvia, Lithuania and Romania.
• £61 for orders from United States and Canada.
• £63 for orders from Liechtenstein.
• £72 for orders from Bosnia and Herzegovina, Norway and Serbia.
• £90 for orders from India.
• £103 for orders from Brazil.
Don’t see your country listed?
We ship worldwide. Contact us for a shipping quote and delivery timeframe.
• +44 (0) 1246 261 999
• websales@peaksensors.com
Q: What is a Cable Thermocouple with Metal Pocket?

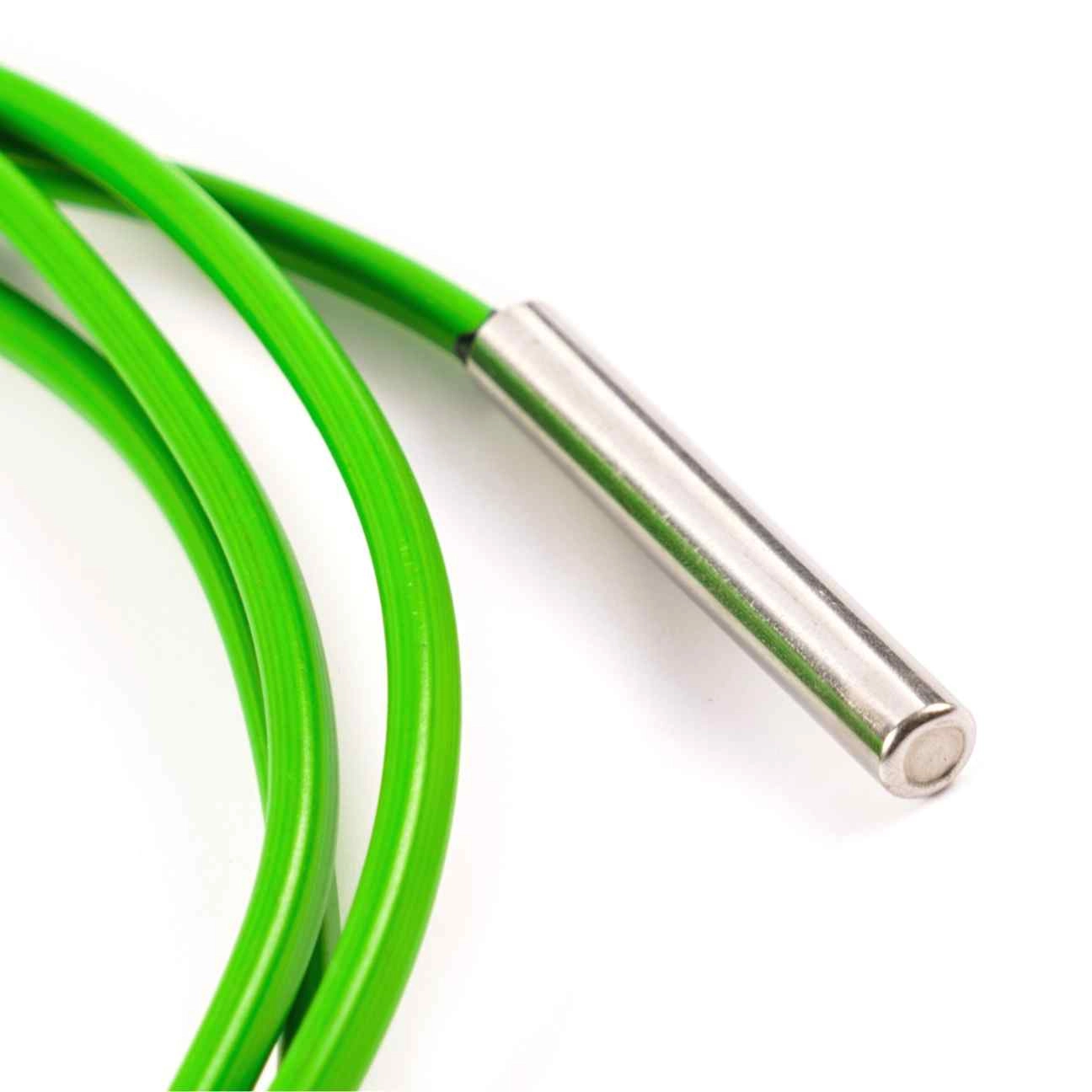

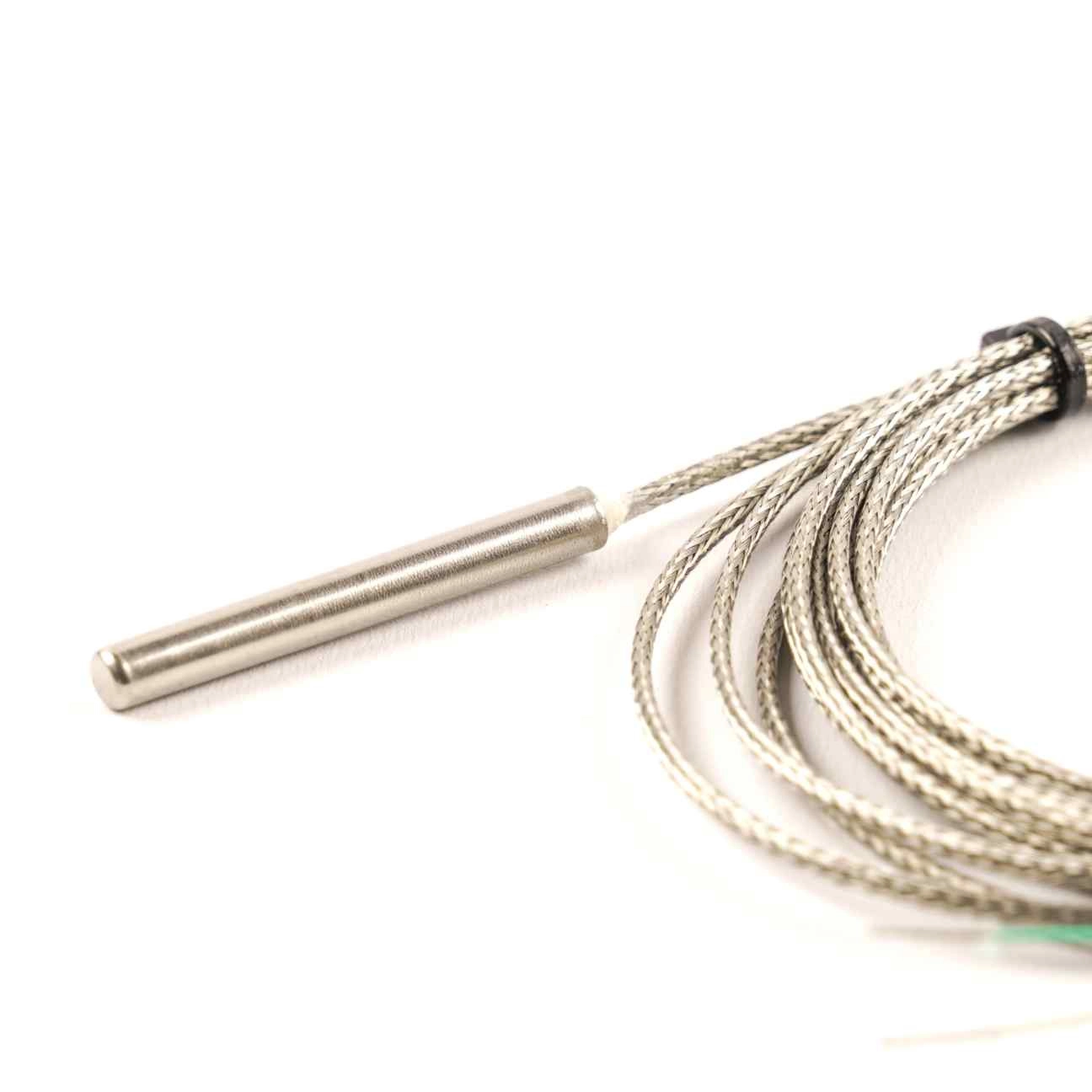

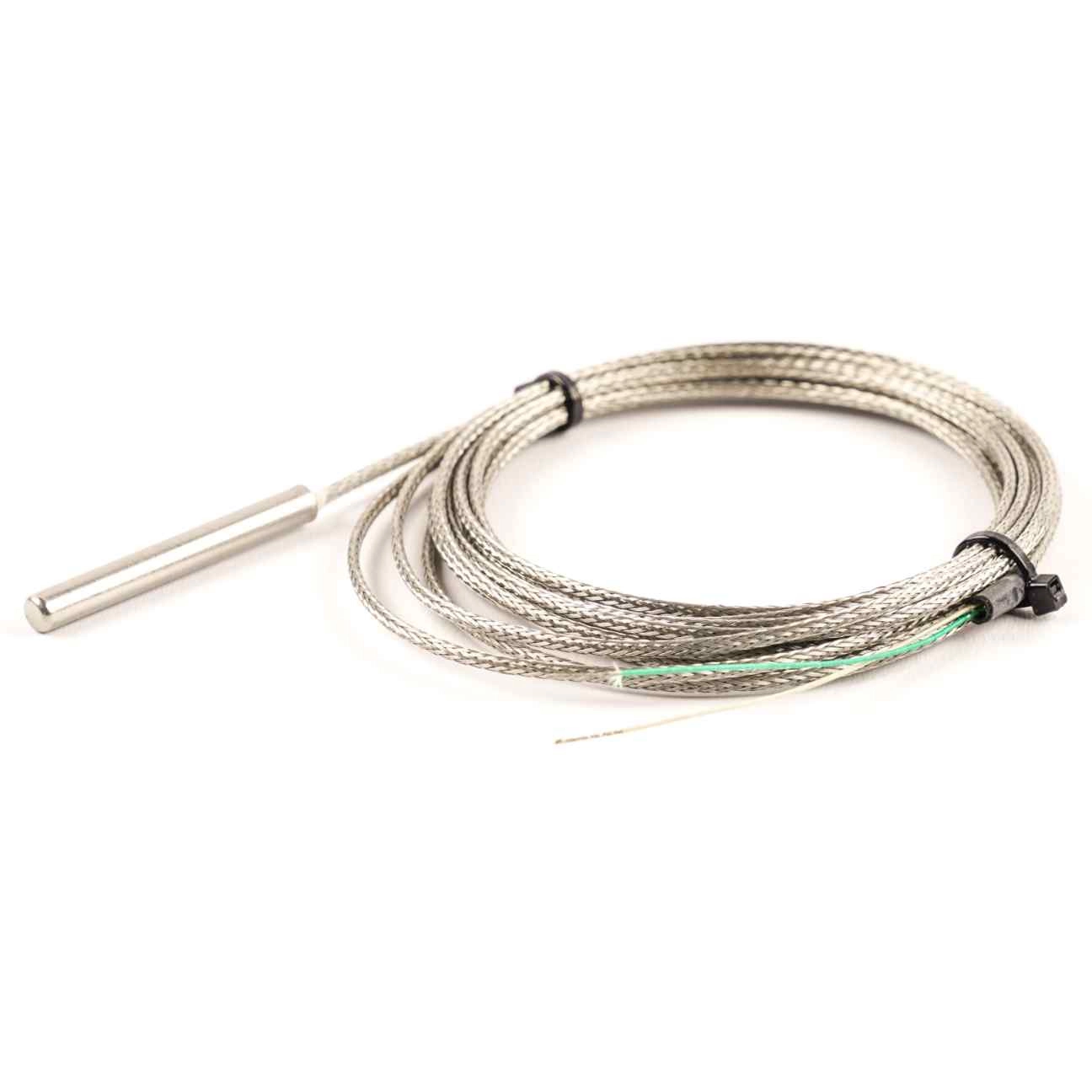

A: A Cable Thermocouple with Metal Pocket is a temperature sensor that combines a thermocouple element with a protective metal pocket and flexible cable assembly. The metal pocket protects the sensing junction from the process environment while allowing the cable to be routed through equipment and machinery.
Q: What is the Cable Thermocouple with Metal Pocket used for?
A: The Cable Thermocouple with Metal Pocket is commonly used for original equipment manufacture (OEM), industrial machinery, equipment temperature monitoring, process temperature measurement, and applications requiring a protected sensing junction with flexible cable routing.
Q: What temperature range can the Cable Thermocouple with Metal Pocket measure?
A: The Cable Thermocouple with Metal Pocket is designed to operate over a temperature range of -100°C to +230°C.
Q: Which thermocouple types are available?
A: Common thermocouple options for the Cable Thermocouple with Metal Pocket include Type K, Type J, Type N, Type T, and Type E. These thermocouple types provide flexibility for a wide range of industrial temperature measurement applications, allowing the sensor to be selected according to specific operating temperatures and process requirements.
Q: What are the benefits of a metal pocket design?
A: The metal pocket provides protection from the process environment, mechanical durability, and fast sensor response. Designed for flexible equipment integration, it offers numerous custom design possibilities for OEM applications where reliable and protected temperature measurement is required.
Q: What pocket materials and sizes are available?
A: Common pocket materials for the Cable Thermocouple with Metal Pocket include 316 Stainless Steel (316SS), brass, and aluminium. These materials provide options for different environmental, mechanical, and thermal requirements. Common pocket diameters range from Ø2.0 mm up to Ø12.7 mm, allowing the sensor to be configured for a wide variety of industrial and OEM applications.
Q: What cable insulation options are available?
A: Common insulation materials for the Cable Thermocouple with Metal Pocket include PVC, silicone rubber, PTFE, and glass fibre. The insulation material can be selected to suit specific environmental conditions, operating temperatures, and application requirements, ensuring reliable performance across a range of industrial temperature measurement applications.
Q: What are the standard cable details?
A: The Cable Thermocouple with Metal Pocket is commonly supplied with 7 × 0.2 mm stranded conductors, 50 mm tails, and 10 mm tinned wire ends. These features provide straightforward installation and termination, allowing easy connection to instrumentation, control systems, and existing electrical assemblies.
Q: What customisation options are available?
A: Available options for the Cable Thermocouple with Metal Pocket include threaded pockets, right-angle or custom bent pocket designs, high-tolerance machined metal enclosures, cable spring strain relief, partial heat transfer paste filling, duplex thermocouples, grounded or insulated junctions, IP68-compatible designs, and material certification documentation. These options provide enhanced protection, installation flexibility, and customisation for demanding industrial and OEM temperature measurement applications.
Q: Why choose the Cable Thermocouple with Metal Pocket?
A: The Cable Thermocouple with Metal Pocket offers reliable temperature measurement from -100°C to +230°C with a protected sensing junction for improved durability and fast sensor response. Designed with flexible cable routing, it is available with multiple thermocouple type options and a choice of pocket materials and dimensions. With extensive customisation possibilities, the sensor is suitable for a wide range of industrial and OEM applications and is manufactured in compliance with REACH, RoHS, Conflict Minerals, and ISO 9001 quality standards.
