Special Options:
- Duplex
- Insulated exposed or grounded junction
- Tagging
- Material Certificates
| Type Designation: |
MTD
|
| Temperature Range: |
-200 to 1250°C depending on thermocouple sensor type
|
| Common Sensor Types: |
K, J, N, T, E
|
| Common Diameters: |
Ø 3.0mm, 6.0mm, 8.0mm
|
| Common Sheaths: |
Inconel, 316 SS, 321 SS, 310 SS, Nicrobell.
|
| Block size: |
Ø 41mm, M4 screws 33mm PCD
|
| Cold End Max Temperature: |
100 ° C
|
| Tail Detail: |
75mm tails, 10mm tinned
|
Delivery time: 1 week, subject to stock availability.
We ship to the following countries:
United Kingdom, Austria, Belgium, Bosnia and Herzegovina, Brazil, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, India, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, United States
Shipping rates:
• £15 for orders from UK Mainland.
• £25 for orders from UK – Highlands & Islands.
• £35 for orders from Belgium, Ireland, Luxembourg and Netherlands.
• £37 for orders from France and Germany.
• £42 for orders from Switzerland.
• £43 for orders from Austria, Denmark, Italy, Portugal and Spain.
• £45 for orders from Czech Republic, Slovakia, Slovenia and Bulgaria.
• £49 for orders from Iceland.
• £51 for orders from Finland, Sweden and Greece.
• £53 for orders from Croatia, Estonia, Hungary, Poland, Latvia, Lithuania and Romania.
• £61 for orders from United States and Canada.
• £63 for orders from Liechtenstein.
• £72 for orders from Bosnia and Herzegovina, Norway and Serbia.
• £90 for orders from India.
• £103 for orders from Brazil.
Don’t see your country listed?
We ship worldwide. Contact us for a shipping quote and delivery timeframe.
• +44 (0) 1246 261 999
• websales@peaksensors.com

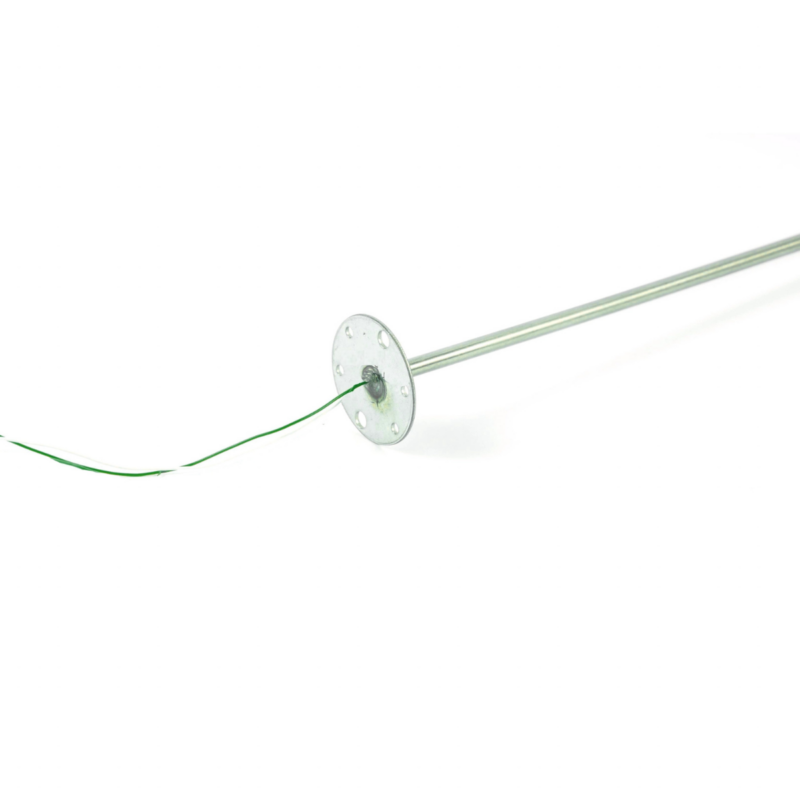

Q: What is a Mineral Insulated Thermocouple Insert with DIN Plate?
