Special Options:
- Duplex
- Higher accuracy sensors A, 1/3,1/5,1/10 DIN
- Pt 50, Pt 500, Pt 1000 and Pt 2000, Cu or Ni element
- 2 or 4 wires
- Compression fitting
- Tagging
- Material Certificates
| Type Designation: |
MRD
|
| Temperature Range: |
-100 to 500 ° C
|
| Common Sensor Types: |
1 Pt 100 B
|
| Temperature Coefficient: |
0.3850 ohms/° C
|
| Wiring: |
3 wire, marked red/red/white
|
| Common Diameters: |
Ø 3.0, 4.5, 6.0, 8.0mm
|
| Common Sheaths: |
316 SS
|
| Head Connection: |
M4 Screws 33mm PCD
|
| Cold End Max Temperature: |
100 ° C
|
| Tail detail: |
75mm tails, 10mm tinned
|
Delivery time: 1 week, subject to stock availability.
We ship to the following countries:
United Kingdom, Austria, Belgium, Bosnia and Herzegovina, Brazil, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, India, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, United States
Shipping rates:
• £15 for orders from UK Mainland.
• £25 for orders from UK – Highlands & Islands.
• £35 for orders from Belgium, Ireland, Luxembourg and Netherlands.
• £37 for orders from France and Germany.
• £42 for orders from Switzerland.
• £43 for orders from Austria, Denmark, Italy, Portugal and Spain.
• £45 for orders from Czech Republic, Slovakia, Slovenia and Bulgaria.
• £49 for orders from Iceland.
• £51 for orders from Finland, Sweden and Greece.
• £53 for orders from Croatia, Estonia, Hungary, Poland, Latvia, Lithuania and Romania.
• £61 for orders from United States and Canada.
• £63 for orders from Liechtenstein.
• £72 for orders from Bosnia and Herzegovina, Norway and Serbia.
• £90 for orders from India.
• £103 for orders from Brazil.
Don’t see your country listed?
We ship worldwide. Contact us for a shipping quote and delivery timeframe.
• +44 (0) 1246 261 999
• websales@peaksensors.com

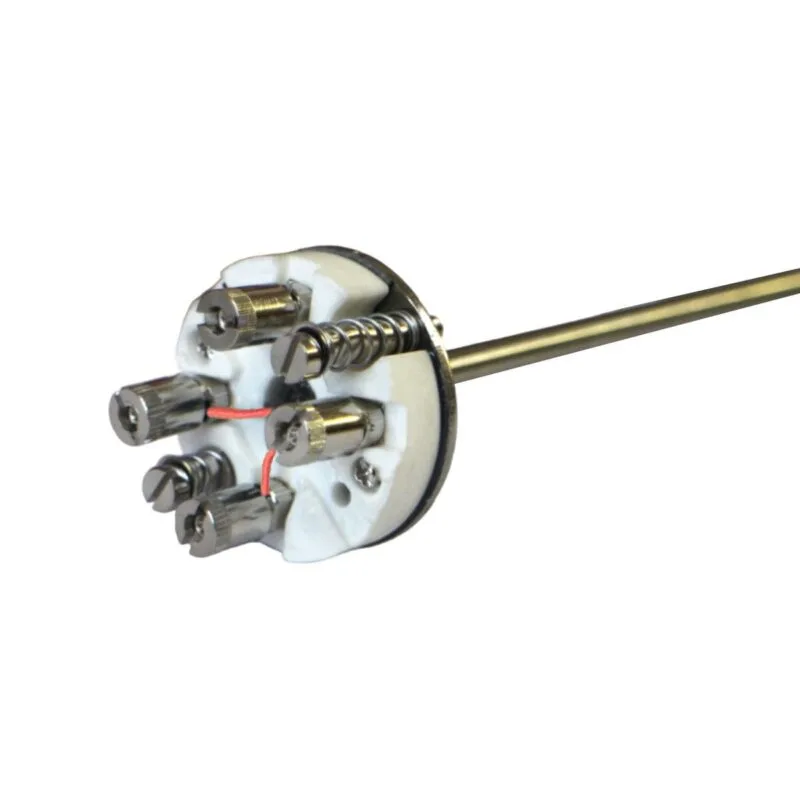

Q: What is a Mineral Insulated Resistance Thermometer Insert with DIN Plate?
A: A Mineral Insulated Resistance Thermometer Insert with DIN Plate is an RTD temperature sensor insert designed for use with existing temperature transmitter and head assemblies. It features a mineral insulated probe and a standard DIN mounting plate for easy integration into industrial temperature measurement systems.
Q: What is the Mineral Insulated Resistance Thermometer Insert with DIN Plate used for?
A: The Mineral Insulated Resistance Thermometer Insert with DIN Plate is commonly used for reliable temperature measurement in industrial process applications. Typical uses include head-mounted transmitter assemblies, thermowell installations, industrial process temperature measurement, sensor replacement during maintenance, and new temperature transmitter installations where accurate and dependable RTD performance is required.
Q: What temperature range can the Mineral Insulated Resistance Thermometer Insert with DIN Plate measure?
A: The Mineral Insulated Resistance Thermometer Insert with DIN Plate is designed to operate from -100°C to +500°C.
Q: Why is the Mineral Insulated Resistance Thermometer Insert with DIN Plate ideal for transmitter installations?
A: The Mineral Insulated Resistance Thermometer Insert with DIN Plate is specifically designed to allow customers to fit an existing temperature transmitter to a new RTD probe, making it ideal for upgrades and replacement applications.
Q: What sensor element is commonly used in the Mineral Insulated Resistance Thermometer Insert with DIN Plate?
A: The Mineral Insulated Resistance Thermometer Insert with DIN Plate is commonly supplied with a Pt100 Class B thin-film RTD sensor featuring a temperature coefficient of 0.3850 ohms/°C.
Q: What probe diameters are available for the Mineral Insulated Resistance Thermometer Insert with DIN Plate?
A: Common probe diameters available for the Mineral Insulated Resistance Thermometer Insert with DIN Plate include Ø3.0 mm, Ø4.5 mm, Ø6.0 mm, and Ø8.0 mm. These options provide flexibility to suit different installation requirements, allowing the insert to be selected based on available space, response time considerations, and application conditions.
Q: What sheath material is used in the Mineral Insulated Resistance Thermometer Insert with DIN Plate?
A: The Mineral Insulated Resistance Thermometer Insert with DIN Plate is commonly manufactured with a 316 stainless steel sheath, offering excellent durability and corrosion resistance.
Q: What connection arrangement does the Mineral Insulated Resistance Thermometer Insert with DIN Plate use?
A: The Mineral Insulated Resistance Thermometer Insert with DIN Plate features a DIN-style head connection using M4 screws on a 33 mm pitch circle diameter (PCD).
Q: What customisation options are available for the Mineral Insulated Resistance Thermometer Insert with DIN Plate?
A: The Mineral Insulated Resistance Thermometer Insert with DIN Plate is available with a range of customisation options to meet specific application requirements. Available configurations include duplex sensor designs, higher accuracy RTD classes (A, 1/3, 1/5, and 1/10 DIN), Pt50, Pt500, Pt1000, and Pt2000 elements, copper and nickel elements, 2-wire and 4-wire versions, compression fittings, product tagging, and material certification documentation. These options provide flexibility for accurate, reliable, and application-specific temperature measurement solutions.
Q: Why choose the Mineral Insulated Resistance Thermometer Insert with DIN Plate?
A: The Mineral Insulated Resistance Thermometer Insert with DIN Plate offers easy integration with existing transmitters and a standard DIN mounting arrangement for straightforward installation. Featuring spring-loaded construction for improved thermal contact, it enables fast replacement during maintenance and provides reliable temperature measurement at operating temperatures up to 500°C. Manufactured with robust 316 Stainless Steel construction, it is available with multiple RTD and wiring options to suit a wide range of applications. The product is compliant with REACH, RoHS, and ISO 9001 quality standards, ensuring consistent quality and dependable performance.
