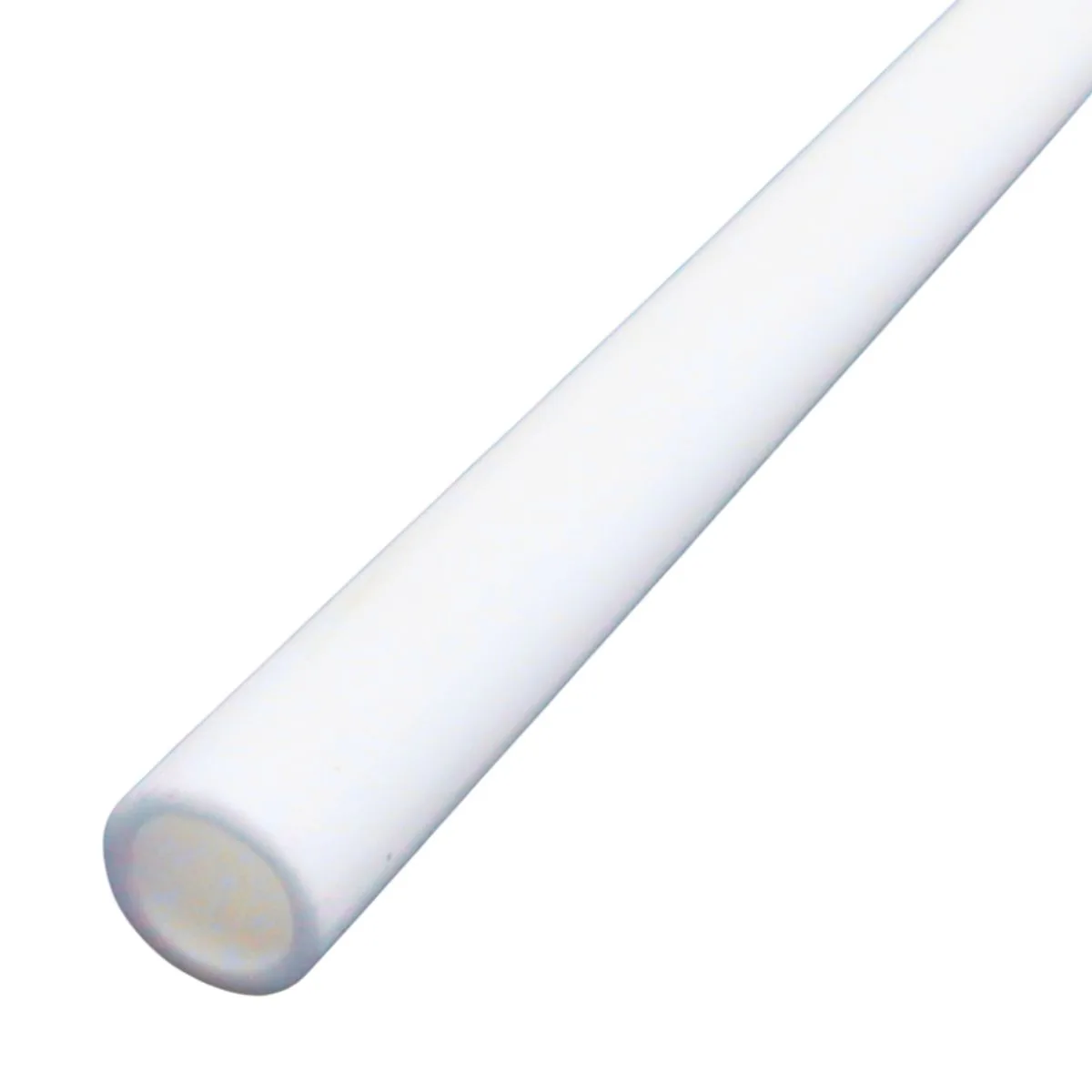

Q: What is a 10mm OD x 7mm ID Aluminous Porcelain Tube with open ends used for?
A: This ceramic tube is primarily used to provide insulation and mechanical protection for thermocouple wires in high-temperature applications. The open-both-ends design allows thermocouple assemblies to pass completely through the tube, making it suitable for custom probe construction, sensor protection, and furnace instrumentation.
Q: What is the difference between an open-ended and a closed-end ceramic tube?
A: An open-ended tube allows thermocouple wires or assemblies to pass through the entire length of the tube, whereas a closed-end tube protects the thermocouple junction from direct process exposure. Open-ended tubes are commonly used as insulating sleeves, while closed-end tubes are often used as protective sheaths for the sensing tip.
Q: Which thermocouple types are commonly used with this ceramic tube?
A: This aluminous porcelain tube is mainly used with base metal thermocouples such as Type J, Type K, and Type N. It helps protect the thermocouple conductors while providing electrical insulation in high-temperature environments.
Q: What maximum temperature can this ceramic tube withstand?
A: The tube is designed for temperatures up to 1400°C. This makes it suitable for use in furnaces, kilns, heat treatment equipment, laboratories, and other industrial high-temperature applications.
Q: Why is aluminous porcelain commonly used for thermocouple protection?
A: Aluminous porcelain offers excellent temperature resistance, good electrical insulation, and strong thermal shock resistance. These properties make it suitable for protecting thermocouple assemblies operating in demanding thermal environments.
Q: Is this ceramic tube suitable for thermal cycling applications?
A: Yes. The material offers good thermal shock resistance, making it suitable for applications where temperatures rise and fall repeatedly. This helps reduce the risk of damage caused by frequent heating and cooling cycles.
Q: When should I choose an open-ended ceramic tube instead of a ceramic insulator bead?
A: An open-ended ceramic tube is often preferred when continuous protection is required along a longer section of thermocouple wire. Ceramic beads are typically used for individual conductor insulation, whereas a tube provides full-length protection and support.
Q: What advantage does the 10mm outer diameter and 7mm inner diameter provide?
A: The 10mm outer diameter offers good mechanical strength, while the 7mm internal bore provides sufficient room for many thermocouple assemblies and insulated conductors. This combination makes it suitable for a wide range of industrial temperature sensing applications.
Q: Which industries commonly use open-ended aluminous porcelain tubes?
A: These tubes are commonly used in heat treatment, ceramics manufacturing, metal processing, furnace construction, power generation, laboratories, glass production, and industrial process heating applications where thermocouple protection and insulation are required.
Q: Does this ceramic tube comply with recognised industrial standards?
A: Yes. The tube is manufactured to DIN VDE 0335 C610 requirements and is supported by REACH, RoHS, Conflict Minerals, and ISO 9001 compliance standards. This makes it suitable for use in quality-controlled industrial environments.
